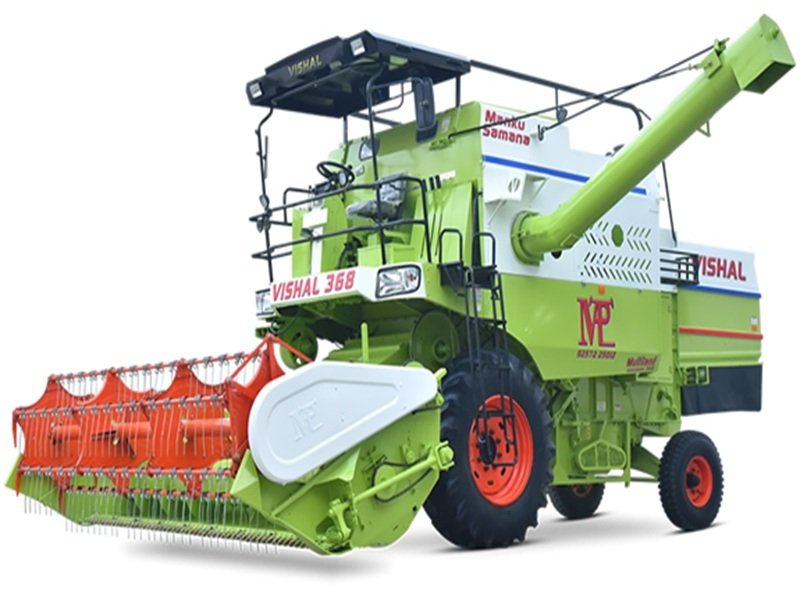

VISHAL 368 Multiland (46")

Self Propelled Combine Harvesters


  • Model :VISHAL 368 Multiland
  • Category: Combine Harvester
  • Type: Straw Walker
  • Cutter Bar: 13 Feet
  • No. of Straw Walkers: 5 (Five)
  • Engine:ASHOK Leyland / Kirloskar
  • Harvesting:Multicrop
  • Steering: Power Steering

Ex. Factory Price : 30,80,000/-

Key Features


  • Self-propelled multi-crop combine harvester
  • Performs harvesting, threshing & winnowing in one operation
  • Suitable for wheat, soybean, gram, pulses, barley & sunflower
  • High grain output with minimal losses
  • Efficient straw chopping and baling system
  • Saves time, labor, and harvesting cost
  • Supported by Naman Agro & Industrial solutions – 10+ years in Bhopal & Ujjain (MP)
Contact Us

The VISHAL 368 Multiland is a dependable self-propelled combine harvester designed to deliver efficient, fast, and cost-effective harvesting for Indian farming conditions. This advanced machine integrates harvesting, reaping, threshing, and winnowing into one continuous process, helping farmers save valuable time and reduce labor costs.

Built for multi-crop applications, the VISHAL 368 Multiland is suitable for harvesting wheat, oats, rye, barley, soybean, sunflower, gram, and pulses. Its precision-engineered mechanism ensures high grain recovery with minimal losses, making it ideal for small to medium-scale farming operations.

After harvesting, the leftover crop residue—comprising dried stems and leaves—can be chopped and evenly spread across the field to support soil management or baled for livestock feed and bedding, adding additional value to farm productivity.

Known for their economic efficiency and labor-saving performance, VISHAL Combine Harvesters significantly reduce dependence on manual labor while improving overall harvesting speed and farm output.

For genuine products, expert guidance, and reliable after-sales service, Naman Agro & Industrial solutions, a trusted agricultural machinery dealership with over 10 years of experience, proudly supplies VISHAL 368 Multiland Combine Harvesters in Bhopal and Ujjain, Madhya Pradesh. Farmers across MP rely on Naman Agro & Industrial solutions for quality equipment that enhances efficiency and long-term profitability.

  • High Road Speed
  • High Ground Clearance
  • Very Low Cutting Height
  • Power Steering
  • Power Coated Body Paint for Long Life
  • Heavy Duty Disc Break
  • Heavy Duty 4 Speed Gear Box
  • Stainless Steel Elevators
  • Heavy Duty Double Reel
  • Wide Straw Walker
  • Extra Cpacity Diesel Tank
  • Thorough Threshing
  • Clear Separation
  • No Grain Breakage
  • High Grain Cleanness
  • Small Turning Radius
  • Easy to Maintain
  • Suitable for Wheat, Paddy, Soyabean, Sunflower & Mustard
  • Good maneuverability in the Wet and Soft Fields
  • Well adaptation to the crops of slightly wet, lodged, or hard to thresh

MANUFACTURER
MANKU Agro Tech Private Limited.
Address of Manufacturer
Sehajpura Road, Samana - 147101, Distt. Patiala, Punjab. INDIA
MAKE
VISHAL
Model
368 - Multiland
Type
Self Propelled Combine Harvester
ENGINE
Make
ASHOK LEYLAND / EICHER
Model
133 HP
Type
Four Stroke, Water Cooled, Direct Injection Diesel Engine.
Maximum Speed at no load
2400 RPM
Rated Speed
2200 RPM
Rated Speed for Field Operations
1750
No. of Cylinder
Six
THRESHING DRUM
FOR WHEAT
FOR PADDY
Type
Rasp Bar
Peg Tooth
Width (mm)
1145
1145
Outside dia (mm)
605
605
Range of speed corresponding to 7 RPM of engine (RPM)
Minimum
573
573
Maximum
1034
1034
STRAW WALKER
No. of Straw Walker
Five
Type
Closed Rack Type. Serrated side edges with 6 steps on each Straw Walker.
Size of each Straw Walker
Length (mm)
3990
width (mm)
210
Area (M2)
0.82
Effective separating area of straw walker (M2)
6.44
Lift/throw (mm)
140/140
Oscillation per minute corresponding to 1750 RPM of Engine
152
GRAIN TANK
Location
On top of Combine, Behind Operator’s Seat.
Capacity: Volume Basis (M3)
1.566
Capacity: Mass Basis (kg)
1300
TYRES
Front
18.4-30,12PR
Rear
9.00,16PR
Break System
Disc Brake
Ground Clearance
1761
CONCAVE
FOR WHEAT
FOR PADDY
Overall Width of Concave (mm)
1165
1160
Effective Width (mm)
1130
1125
Type of concave
Open flat bars
Open flat bars with pegs in three rows.
No. of Bars
12
8
No. of Pegs per bars
-
18 nos in two rows and 16 nos in one row
CLEANING SIEVES
TOP Sieve
No of Sieve
Two
Type
Open lip frog mouth type
Overall size of sieve
FRONT
REAR
Length (mm)
1240
1240
Width (mm)
1090
635
Effective cleaning area (m2)
1.21
0.58
Area of extension (m2)
NIL
NIL
BOTTOM SIEVE
No of Sieve
One
Type
Open Lip Frog Mouth Type
Length(mm)
1400
Width(mm)
1090
Effective Cleaning Area (m2)
1.37
Oscillation per minute corresponding to 1750rpm of engine
280
Method of varying oscillation
NONE
Height of lips at maximum opening (mm)
25
No. & type of bearings of sieve shaker assembly
8 Ball Bearings (6205FLT Polland) 12 Rubber Bushes on linkages of shaker mechanism.
CUTTER BAR ASSEMBLY
Working width with shoes (mm)
4030
Effective cutter bar width (mm)
3960
No. & Spacing of knife guards
52 (26 Pairs), 80 mm Apart
No. & Type of knife blades
54, Serrated
Details of knife drive
End of Cutter Bar is connected with a lever to the Pittman shaft and oscillated by a crank arm.
Knife Safety Arrangements
Knife Guard Provided
Knife stroke(mm)
90
Stroke per minute
840
Knife speed corresponding to 1750 rpm of engine (m/sec.)
1.26
Type of Crop dividers
Shoe
REEL ASSEMBLY
Type
Tyne Bar Pick Up
Number of Tyne bars
Five
Size of Tyne bars (mm)
3860 x 27
Types of Tyne bars
Hollow metallic pipe with holes for fitting spring Tynes.
Dia of Reel (mm)
975
Width of Reel (mm)
4150
Range of speed corresponding to 1750 RPM of Engine (RPM)
Maximum: 71 Minimum: 28
Arrangements for speed variation
Mechanical,Stepless V – Pulley with mechanical variator.
Number of tynes on each bar and their spacing
36 (18 pairs), Spacing 102 mm
Transmission System
CLUTCH
Type
Dry Friction Disc
Size (mm)
310
GEAR BOX & DIFFERENTIAL
Type
Mechanical, combination of constant and sliding mesh spur gear with differential unit.
No. of Speeds
Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley.
OVERALL DIMESIONS
Working
Transport
Length (mm)
8220
12220
Width (mm)
6370
3130
Height
3820
3820
WEIGHT
9400 Kg +
